Shinobi 7 RX – 7″ Camera Monitor & Receiver
Pre-order now. Ships end of October 2025
$799.00ex. TAX
Key Features
- 7-inch HDR screen with a peak brightness of 2200nits
- Professional monitoring tools include EL Zone/ARRI false color, histogram, waveform, zebra, focus peaking
- HDMI / 3G-SDI input and output
- Camera control over USB-C
- Touch to focus
- Integrated 5G Wi-Fi for low latency (<60ms) receive from Atomos TX
- Stunning 10+ stops of dynamic range in real-time from Log/PQ/HLG signals
- Dual NPF battery slots
SKU: ATOMSHBRX1
Categories: 7-Inch Monitors, Monitors, NEW
Pre-order now - ships end October 2025
Product Details
Shinobi 7 RX camera monitor & receiver combines a larger 7-inch HDR screen with a calibrated peak brightness of 2200nits and the lightweight monitor functions of Shinobi. Can be used in the brightest of environments to monitor signals up to 4Kp60 via HDMI or HDp60 via 3G-SDI.
Camera Control
Take control of Canon, Fujifilm, Nikon, Panasonic, and Sony cameras via USB-C, plus Z CAM cameras via optional USB-C to serial cable.
For a list of compatible camera control and touch to focus cameras click here.
Professional Monitoring Tools
Connectivity

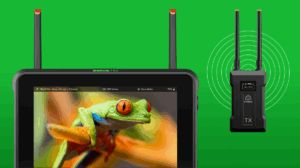

The addition of Wi-Fi connectivity provides a stable link between the Shinobi 7 RX and the TX component of Atomos’ TX-RX wireless video system, or a RTSP H.264 stream. An ideal director’s monitor, focus puller’s monitor, program or preview display for video switchers.
For a list of compatible cameras click here.
What’s in the box?
- Shinobi 7 RX monitor
- USB-C 2.0 cable (1m)
- 2 x Wi-Fi antenna
- 5 x antenna tips
- Quick Start Guide
Physical
Dimensions (W x H x D mm)
198mm x 133mm x 39mm
Weight
580g (excluding batteries and antennas)
Mounting Points
1 x anti-rotation 1/4-inch top and bottom
Environmental
Ambient Operating Temperature
Up to 40 degrees Celsius
Construction
Body
ABS polycarbonate
Cooling
Heat sink + actively controlled fan
Power
Input voltage
6.2V - 16.8V
Operating power
26W
Multi-function button
Power / lock screen
Continuous power
Via NP-F battery or USB-C PD Power
DC in connector
Via Battery Eliminator (optional)
USB PD IN
45W capable, power supply required
USB PD OUT
Up to 13W
Display
Size
7-inch HDR screen with a calibrated peak brightness of 2200nits
Resolution
1920 x 1200
Backlight Type
Edge-lit
Brightness (cdm2 / Nits)
2200
Panel ratio
16:10
Color Gamut
Rec.709
Calibration support
Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable
Color Pipeline
Gamma
Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log
Gamut
BT.2020, DCI P3, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema: DCI P3 / DCI P3plus / Rec.709. Panasonic: V Gamut. ARRI: Alexa Wide Gamut. JVC: LS300. RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
3D LUT Display
.Cube format (17 & 33 points supported)
3D LUT Down Stream
Loop out
3DLUT 50/50
Yes
Monitoring Modes
SDR Native / HDR HLG / HDR PQ / 709 LUT / User LUT
Video Input
HDMI
1 x HDMI (2.0)
Locking port
N/A
SDI
up to 1080p60
Wi-Fi
Wi-Fi 6E
USB
1 x USB-C 2.0/3.0
Bit Depth
8/10-bit video
Video Chroma Subsampling
4:2:2
Video Output
HDMI
1 x HDMI (2.0)
Locking port
N/A
SDI
1 x 3G-SDI
Wi-Fi
Wi-Fi 6E
USB
2 x USB-C 2.0/3.0
Bit Depth
8/10-bit video
Video Chroma Subsampling
4:2:2
Metadata
HDMI
N/A
Network
Wi-Fi
Wi-Fi 6E
Connectivity
LANC
Yes
Audio In/Out
HDMI
2-channel, 24-bit
SDI
8-channel, 24-bit
Headphone Out
3.5mm headphone jack, 2-channel
Timecode
Embedded
HDMI (display only)
Time of day
Yes
Reference / Genlock input
No
LTC
No
Resolution & Frame Rates
4K DCI
23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60p
4K UHD
23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60p
2K DCI 2048 x 1080
Yes
1080p
23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60 / 100 / 120p
1080 PsF
Converted to P and looped out PsF
1080i
50 / 59.94 / 60i
720p
50 / 59.94 / 60p
Supported Media
SD
To update firmware and upload LUTs
File System
FAT32, NTFS
On-screen Monitoring Tools
MultiScope Analysis View
Image, WFM, vector, histogram
Waveform
3 sizes – adjustable opacity & brightness
Histogram
1 sizes – adjustable opacity & brightness
RGB parade
3 sizes – adjustable opacity & brightness
Vectorscope
2 sizes – adjustable opacity & brightness
1 x Zoom
Yes. 1:1 pixel mapping for 4K
2 x Zoom
Yes
4 x Zoom
Yes
Focus peaking
4 modes (color, black & white, outline, edge sharpening) with adjustable outline color & peaking intensity
Atomos False Color
Yes, with scale
Zebra
Adjustable threshold (50% to 105%)
Isolate color channel
Blue Only
Cine Frame Guides
Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9
Social Frame guides
Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2
Safe areas
SMPTE safe title area – 93% & 90%
Grid markers
9 grid
Anamorphic desqueeze
2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x
Display Flip
Horizontal & vertical
External Device Control
USB-C
Camera control for supported cameras via USB-C. Controllable functions: Record Trigger, White Balance, Shutter Speed, Shutter Angle (if supported by camera), Aperture, ISO, Camera Overlays, Record Indicator, Touch to Focus - see Atomos website for camera model compatibility. USB-C port can also be used with external calibrators (no PC required).
Serial 2.5mm Jack
Calibration via optional USB to serial cable
What’s in the Box
Accessories included
Shinobi 7 RX monitor, Wi-Fi antenna, 5x antenna tips (black, white, yellow, green, red), 2 x antenna caps, USB-C 2.0 cable (1m), Quick Start Guide.
Warranty
Standard
1 year. Extended to 2 years on product registration.
