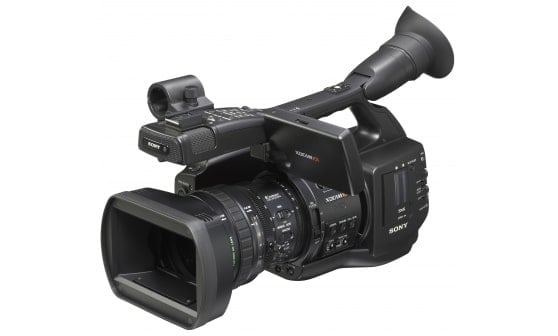

Sony PMW-EX1

This device is in our compatibility list because it has a "clean output" i.e. no menu information on the sensor output. By understanding what your device can output in terms of resolution, frame rate and connectivity you'll be in a better position to understand the best Atomos device for you.

Product Specifications

Sony PMW-EX1


Connection
HDMI Connector Type Full
HDMI True
HD-SDI (Video) True
SDI Connector Type Full BNC
SDI version 1.5G
Internal Recording
Bit Depth 8-bit
Colour Space 4:2:0
Output Recording
Bit Depth 8-bit
Colour Space 4:2:2
Trigger & Timecodes
SDI Trigger None
SDI Timecode Yes
HDMI Trigger None
HDMI Timecode None
Audio Output
3.5mm mini jack 2ch
Embedded HDMI 2ch
Audio Input
XLR 2ch
Resolutions & Framerates
HDMI video HD 1080 SF24p, SF25p, SF30p, 50i, 60i
HDMI video HD 720 50p, 60p
HDMI video SD 480 60i, 60p
HDMI video SD 576 50i, 50p
SDI video HD 1080 SF24p, SF25p, SF30p, 50i, 60i
SDI video HD 720 50p, 60p
SDI video SD 480 60i
SDI video SD 576 50i
