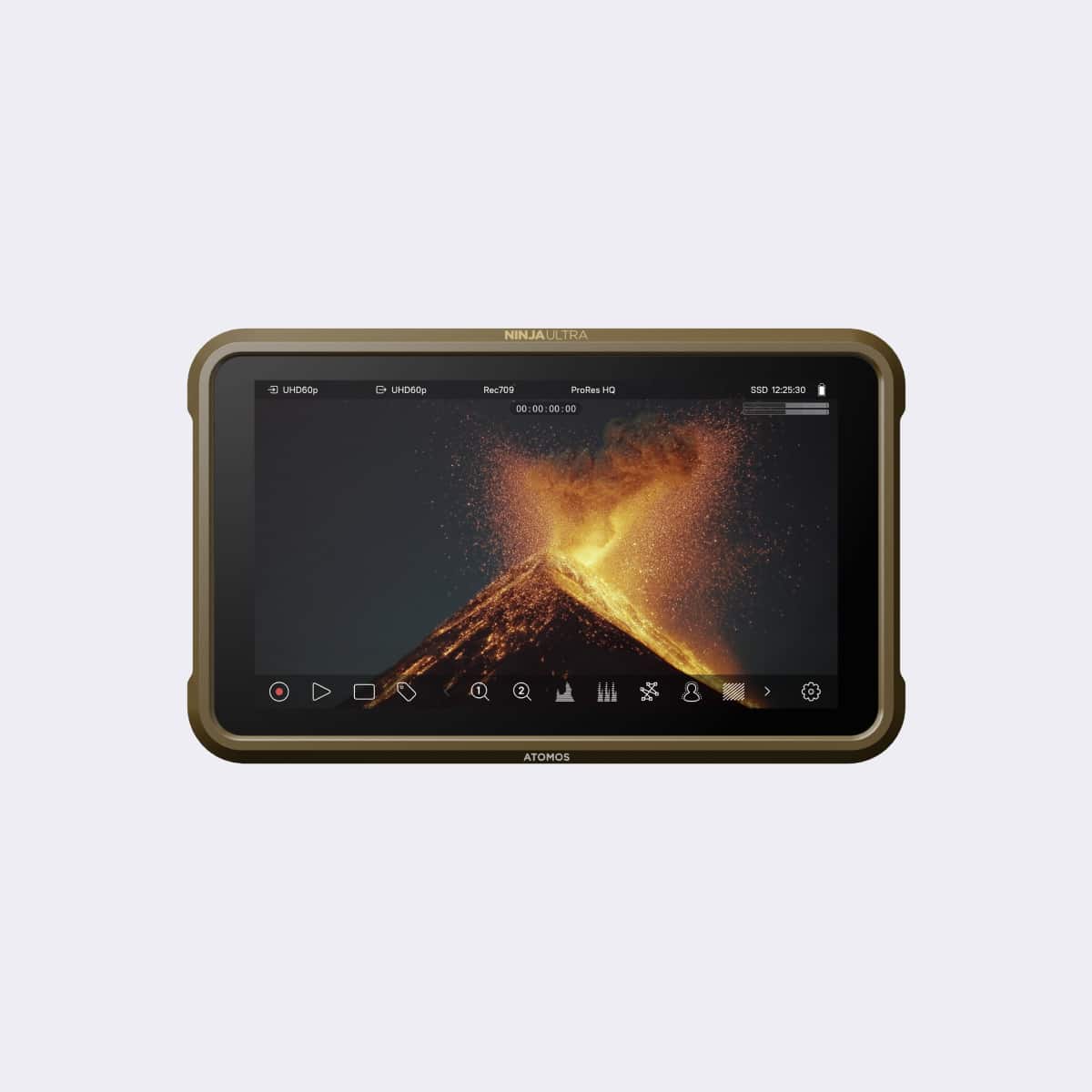

Ninja Ultra 5″ Camera-Monitor + Accessory Kit
Get a FREE qualified 240GB SSD with this monitor!*
$924.00ex. TAX
Key Features
- Record up to 8Kp60 and 4Kp120 in Apple ProRes RAW
- Choose from ProRes RAW, ProRes, Avid DNxHD or H.265 codecs
- Comprehensive monitoring tools for focus, framing and exposure
SKU: ATOMNJAU01-bundle
Categories: Bundles, Monitor-recorders
Tags: AtomRemote, camera, cloud studio, expansion, live streaming, monitor recorder, ninja, touchscreen, video
Product Details
Ninja Ultra and accessory kit, covering all your creation needs on the go.
Ninja Ultra is a leap forward in filmaking technology. You get all of Ninja’s monitoring/recording tools and capabilities, but in conjunction with the Atomos Connect, it opens up a host of ultra-efficient cloud workflows, including dual record ProRes RAW/H.265 for camera to cloud, automated matching filenames with cinematic cameras and 4K H.265 for instant publishing from the cloud.
For a list of compatible cameras click here.
What’s in the box?
- Ninja Ultra monitor record
- 1x Master Caddy III drive caddy
- Battery Eliminator
- USB C to PD cable locking 2m
- Quick Start Guide

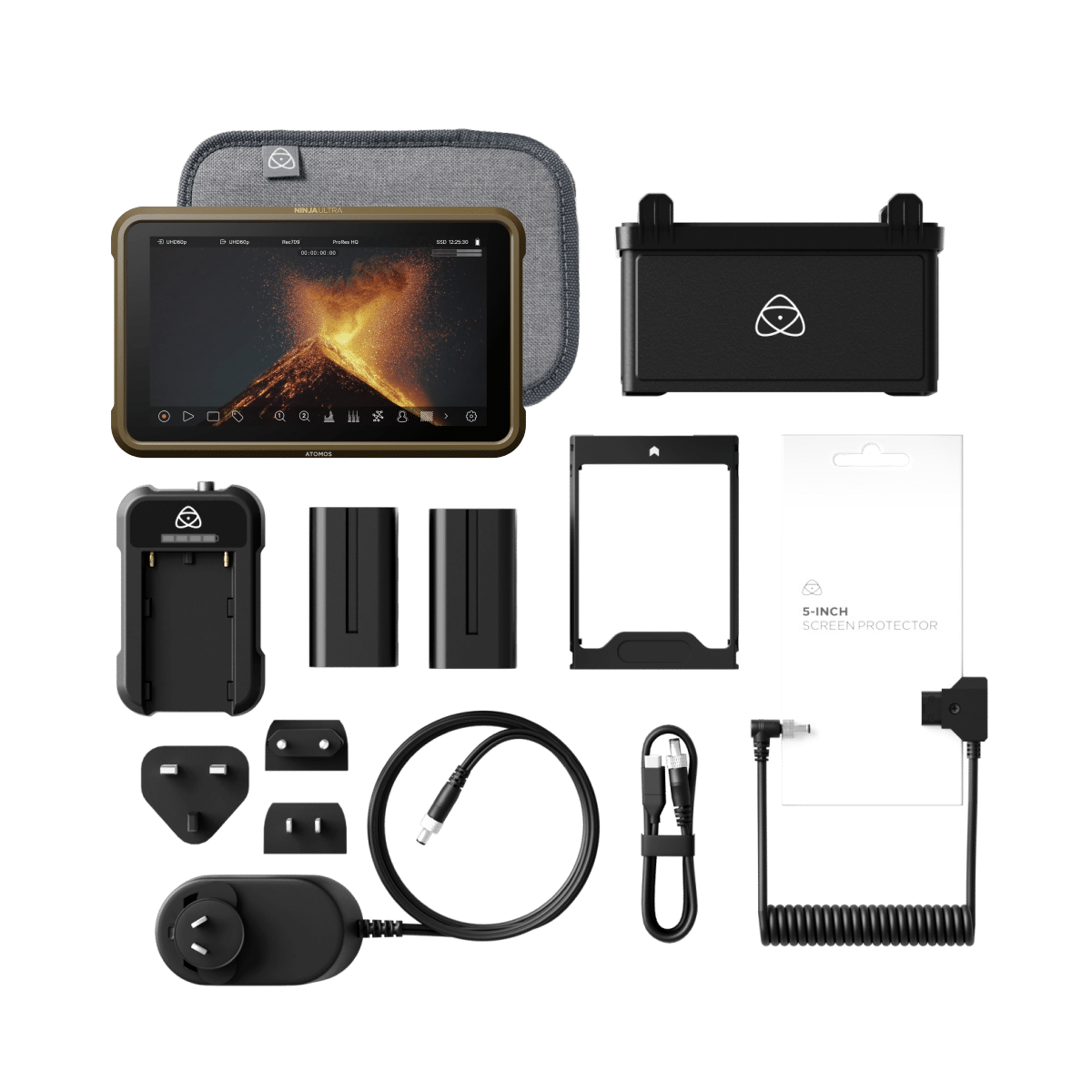

Accessory kit includes:
- Travel Case
- 2 x NP-F750 5200mAh battery
- Fast charger, DC Power Supply
- Sunhood for Ninja V/V+, Ninja & Ninja Ultra
- Screen Protector
- Neoprene 5-inch sleeve
- USB C to 2.1mm DC PD Power cable 2.0m
- Coiled Dtap to 2.1mm DC Power cable 2.0m
- 1x Master Caddy III.
Physical
Dimensions (W x H x D mm)
151mm x 91.5mm x 31 mm / 5.95" x 3.6" x 1.2"
Weight
360g / 12.7 oz
Mounting Points
Top: 1 x 1/4"20 or 3/8" with anti rotational points, Bottom: 1 x 1/4"20 or 3/8" with anti rotational points
Environmental
Ambient Operating Temperature
Up to 40 Degrees Celsius
Construction
Body
Aluminium Alloy Chassis with ABS Polycarbonate Rear Enclosure
Cooling
Heat Sink + Actively controlled Fan
Tally light
LED on the Rear of the Device
Multi-function button
Power / Lock Screen
AtomXpansion Slot
Integrated into Battery Slot
Touch Screen
Capacitive Touch
Power
Input Voltage
6.2V to 16.8V
Operating Power
10 - 22W
Compatible Batteries
1 x NP-F / L-Series
Battery Runtime (Record)
5200mAh: Up to 2 Hours – 7800mAh: up to 3 Hours
DC-in Connector
Via locking DC Jack (5.5mm OD & 2.1mm ID) on Battery Eliminator
D-Tap
Via Battery Eliminator and optional D-Tap to DC-Barrel Cable
Fan Control
Low, Medium, Auto / Turbo Cool / Dim Display
Display
Display Panel
SuperAtom IPS Panel (Capacitive Touch)
Size
5.2"
Resolution
1920 x 1080
Viewing Angle
178 + H & V
PPI
423
Bit Depth
10-Bit (8+2 FRC)
Backlight Type
Edge-Lit
Brightness (cd/m² / nits)
1000
Aspect Ratio
16:9
Color Gamut
Rec.709
Calibration support
ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus
Color Pipeline
Gamma
Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Arri LogC4, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log, Z CAM Z-Log2, Olympus OM-Log400 / Flat, Leica L-Log
Gamut
BT2020, DCI P3, PDCI P3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
3D LUT Display
.Cube Format (17 & 33 points supported)
3D LUT Output
Loop out
3DLUT 50/50
Via Compare Option in LUTs Menu
Monitoring Modes
Native / HLG / PQ / 3D LUT
HDR Output Conversion
Camera Log to HLG / PQ
Color Management
Calibration
ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus
Display Controls
Backlight, Lift, Gamma, Gain
AtomHDR
Built-in Technical Log to HDR EOTF
3D LUTs
Load .Cube files from SSD into 8 LUT Slots On-Device – Use for Monitoring, bake into Recordings (optional), or apply to HDMI / SDI Output Signals
Legalize
Full to Legal Range Conversion available via Input Menu
Video Input
HDMI
1 x HDMI (2.0)
SDI
1 x 12G SDI (optional Atomos Connect Accessory required)
Bit Depth
8/10-Bit for Video / up to 12-Bit for RAW
Video Chroma Subsampling
YCbCr 4:2:0 & 4:2:2
HDR
HDMI Auto Detection
Metadata
HDMI
RAW – White Balance, Exposure Index, Shutter Speed/Angle, Iris/F-Stop, ISO, Gamma, Gamut
SDI
File name from ARRI, Canon, RED & Sony via optional Atomos Connect module
File Naming
Standard
Scene/Shot/Take & Rolling Scene/Shot/Take
Via SDI
Auto-matched filenames from supported Arri, Canon, RED, Sony cameras (optional Atomos Connect Accessory required)
Video Output
HDMI
1 x HDMI (2.0)
Video Chroma Subsampling
4:2:2
Bit Depth
10-bit Video
Video Signal Conversion
SDI to HDMI
Supported (optional Atomos Connect Accessory required)
Audio In/Out
Audio Quality
24-Bit / 48kHz
Audio Codec
PCM
HDMI
8ch 24-Bit, Input dependent
SDI
12ch 24-Bit, Input dependent
Analog Audio In
3.5mm Jack
Analog Audio Out / Headphone Jack
3.5mm Jack
Audio Input Delay
Frame Delay on Analog Input + Automatic Offset Calibration via AtomOS
Timecode / Sync
HDMI Embedded
Supported
SDI Embedded
Supported (optional Atomos Connect Accessory required)
Time of Day
Supported
Wireless SYNC
AirGlu™ SYNC Timecode Network (optional Atomos Connect Accessory required)
RF Network Range
300m (optional Atomos Connect Accessory required)
RF Frequency
Region dependent (optional Atomos Connect Accessory required)
Number of RF Channels
12 RF Channels per Region (optional Atomos Connect Accessory required)
Number of RF Clients
Region dependent (optional Atomos Connect Accessory required)
Bluetooth Network Range
10-15m (line of sight) (optional Atomos Connect Accessory required)
Number of BT Clients
2 Clients (optional Atomos Connect Accessory required)
Resolution and Frame Rates (Record, Monitor & Playback)
8K RAW
up to 8Kp30 via HDMI
6k RAW
up to 6Kp60 via HDMI & 6Kp30 via SDI (optional Atomos Connect Accessory required for SDI)
4K RAW
up to 4Kp120 via HDMI / SDI (optional Atomos Connect Accessory required for SDI)
3.5K Anamorphic RAW
up to 3.5Kp60 via HDMI
2K RAW
up to 2Kp240 (optional Atomos Connect Accessory required for SDI)
4K DCI
up to 4Kp60
4K UHD
up to UHDp60
2K DCI 2048 x 1080
up to 2Kp60 (optional Atomos Connect Accessory required for SDI)
FHD 1920 x 1080 Progressive
up to 1080p120
FHD 1920 x 1080 PsF
Only via Pulldown to Progressive
FHD 1920 x 1080 Interlaced
1080i50 / 1080i60
1280 x 720p
up to 720p60
Recording Codecs
Apple ProRes RAW
ProRes RAW & RAW HQ
Apple ProRes
HQ, 422, LT
Avid DNxHD
220x, 220, 145, 36 (.MOV Wrapper – .MXF Support coming soon)
Avid DNxHR
HQX, HQ, SQ, LB (.MOV Wrapper – .MXF Support coming soon)
H.265
XQ, HQ, MQ, LQ (.MOV Wrapper)
Recording Functions
Camera to Cloud
H.265 uploaded to Atomos Edit, Adobe Frame.io, Sony CI Media (optional Atomos Connect Accessory required)
Simultaneous Proxy Recording
ProRes RAW / ProRes / DNx + H.265 Proxy in C2C Mode (optional Atomos Connect Accessory required)
Pre-roll Recording
8s HD / 2s 4K – ProRes & DNx only
Timelapse
Supported
Gang Control
Via AirGlu™ SYNC Timecode Network (optional Atomos Connect Accessory required)
Scheduled Recording
At specified Time of Day or after a specified Time has elapsed
Playback
Playlist
Selected Clips, Favorites, or Combined
Loop
Supported, with user-customizable In / Out Markers
Apple ProRes Raw
Yes, Recorded clips only
Apple ProRes
HQ, 422, LT (Linear PCM Audio only)
Avid DNx
DNxHD: 220x, 220, 145, 36 – DNxHR HQX, HQ, SQ, LB (Linear PCM Audio only)
H.265
Recorded clips only
Scheduled Playback
At specified Time of Day or after a specified Time has elapsed
Multi Input / Switching
Multiple HDMI input
Supported (optional AtomX CAST Switching Dock required)
Multiview Display
Supported (optional AtomX CAST Switching Dock required)
Multiview Output
Supported (optional AtomX CAST Switching Dock required)
Picture in Picture (PiP)
Supported (optional AtomX CAST Switching Dock required)
Graphic Overlays
Supported (optional AtomX CAST Switching Dock required)
Media Pool Storage
8 PNG Overlays (optional AtomX CAST Switching Dock required)
Input Transitions
Fade to White or Black (optional AtomX CAST Switching Dock required)
Supported media
Master Caddy I
Not Supported
Master Caddy II
Supported – Not supported with AtomX CAST or Atomos Connect Accessories attached
Master Caddy III
Supported
SSDmini
Supported
CFast 2.0
Supported via optional AtomX CFast 2.0 Adapter
Network
Capture to Cloud via Atomos Cloud Studio (optional Atomos Connect Accessory required)
File Naming
Unit Name – Scene/Shot/Take
File System
exFAT
Interface
SATA 3.0
On-Screen Tools
Waveforms
3 Sizes – Adjustable Opacity & Brightness
RGB Parade
3 Sizes – Adjustable Opacity & Brightness
Vector Scope
2 Sizes – Adjustable Opacity & Brightness
1 x Zoom
Tap to Zoom
2 x Zoom
Tap to Zoom
Focus Peaking
3 Modes (Color, Black & White, Outline) with adjustable Outline Color & Peaking Intensity
Zebra
Adjustable Threshold (50% to 105%)
Isolate Color Channel
Blue Only
Cine Frame Guides
6 Presets & Custom Frame Guide Calculator
Social Frame Guides
4 Presets & Custom Frame Guide Calculator
Safe Areas
SMPTE Safe Title Area – 93% & 90%
Grid Markers
9 Grid
Anamorphic Desqueeze
2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x
Display Flip
Vertical
Colorized Exposure
Atomos False Color, EL Zone System, Arri False Color
Frame Grab + Onion Skin Overlay
Capture lossless 1920 x 1080 Pixel Frame Grab & Overlay with various Position + Transparency Options
Onboard Signal Processing
4K UHD Downscale for HD
Available on loop out
DCI Crop
Available on loop out
Interlaced to Progressive
2:2 & 3:2 Pulldown
PsF to Progressive
2:2 & 3:2 Pulldown
Optional Activation Keys
NDI HX3
$/€99 optional Activation available via my.atomos.com
Remote control
HDMI
Trigger Recording via Camera Record Button – Supported Protocols: Canon, Sony, Atomos Open Standard, Timecode (Rec Run)
SDI
Trigger Recording via Camera Record Button – Supported Protocols: Arri, Canon, Ikegami, JVC, Panasonic, RED, Sony, Timecode (Rec Run) (optional Atomos Connect Accessory required)
Serial 2.5mm Jack
Start & Stop Recording via compatible LANC Remotes – Calibration via optional USB to Serial Cable
Bluetooth LE
Via AtomRemote App (optional Atomos Connect Accessory required)
Wireless RF
AirGlu™ Gang Control (optional Atomos Connect Accessory required)
External Device Control
Serial 2.5mm Jack
Z CAM Camera Control via Remote to USB-C Cable
Cut & Tag
FCP XML
Up to 10 Tags supported for each Clip
Supported Applications
XML
Apple Final Cut Pro (.fcpxml)
Apple ProRes RAW
Apple Final Cut Pro, Adobe Premiere, Avid Media Composer, Grass Valley Edius, ASSIMILATE SCRATCH, FilmLight Baselight
Video Codecs
All NLE applications that support Apple ProRes, Avid DNx and H.265 in .MOV Wrapper
What’s in the box
Box Contents
1 x Ninja Ultra, 1 x Battery Eliminator, 1 x USB C PD to 2.1mm DC power lead, 1 x QuickStart Guide
Optional extras
Atomos Connect Accessory, AtomX CAST Switching Dock, Sunhood, DC to D-Tap, Power Kit, HDMI Cables, USB to Serial cable, UltraSync ONE, UltraSync Blue
Warranty
Standard
1 year
Extended
2 years on product registration
