Monitor – Record – Switch
Rack mountable 19-inch, 4K HDR DCI-P3 monitor-recorder-switcher for live production, video village and broadcast
USD 1,999 / EUR 1,899
MSRP / Excluding sales taxes & tariffs
MULTI-CAM SWITCH
Live multi-camera monitoring, quad-channel switching & routing

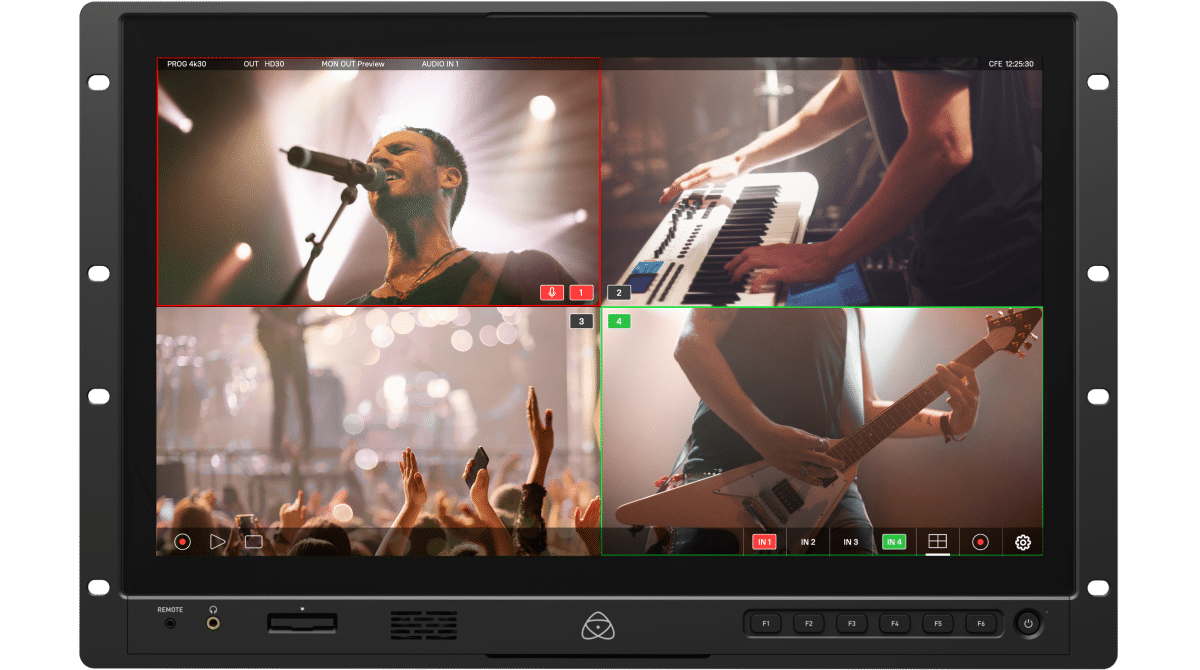

Confidently manage complex productions with a large, color-accurate 4K HDR DCI-P3 display that’s ideal for directors, technical directors, and camera operators. It’s also a live switcher, capable of playing and recording up to four ISO camera feeds, plus a fifth program channel, all while cueing and switching in real-time.
MONITOR
Reliable 4K confidence monitoring
Bright, 19-inch display with comprehensive monitoring tools including EL Zone™ false color, focus peaking, waveform & more. Rugged build and 19‑inch rack-ready form factor make Shogun AV-19 the ideal production monitor for both studio and outside broadcasts. Provides directors, clients, and talent with an on-set viewing station for rapid decision-making.
RECORD
10-bit industry-standard codecs, CFexpress and more!

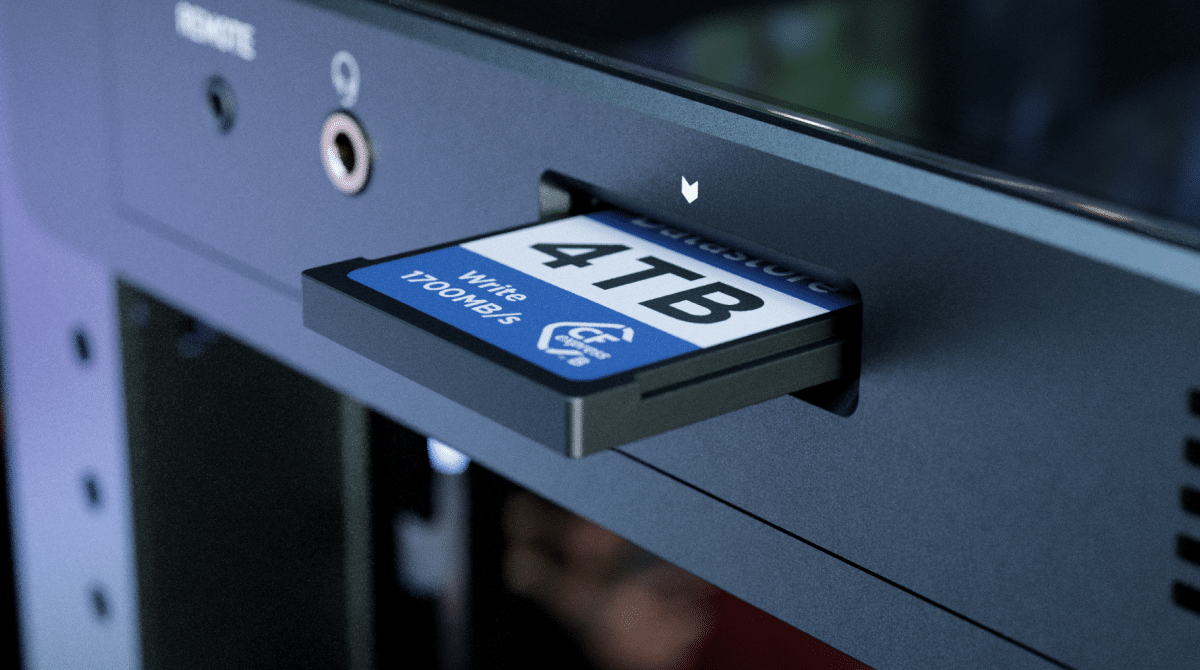

Record Apple ProRes, ProRes RAW or Avid DNx from SDI or HDMI sources, for immediate post-event turnaround. Record up to 10-bit, 4:2:2 in Apple ProRes, ProRes RAW or Avid DNx codecs. Choose to record to either CFexpress* card internally or to external USB-C media*.
*Storage media purchased separately. Minimum performance / certification requirements apply.

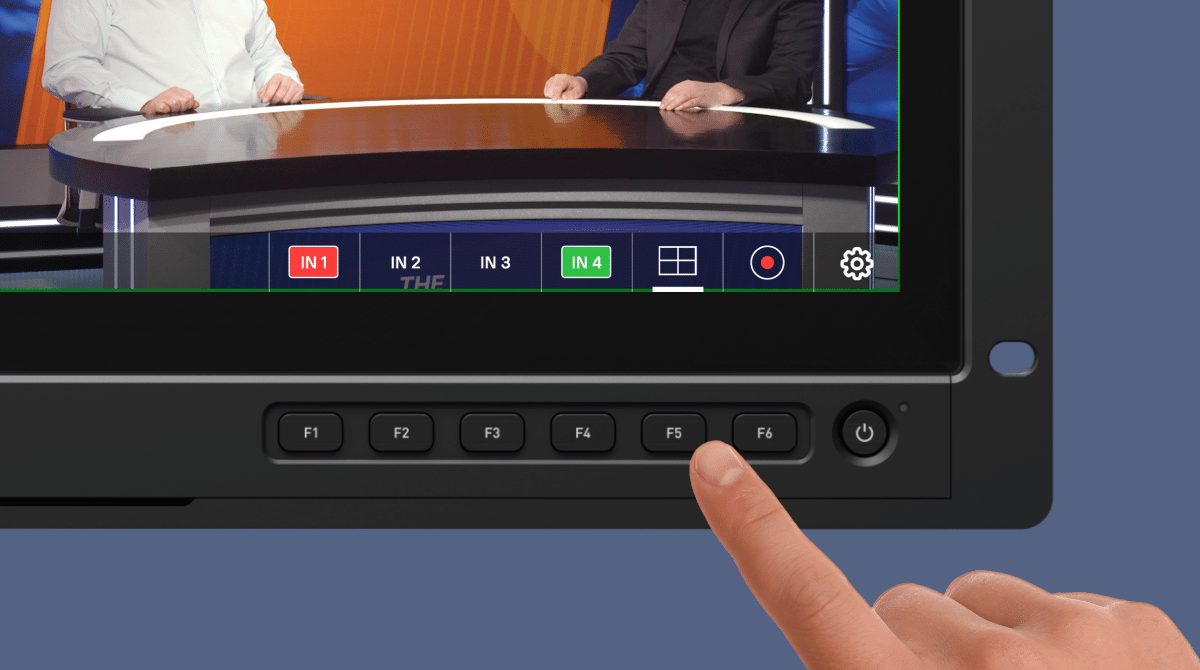

User-definable function buttons
Get instant access to up to six frequently-used features – for example monitoring tools, playback modes, LUTs, anamorphic desqueeze – at the touch of a button. Turns the Shogun AV-19 into a professional control surface, optimized for speed, reliability, and personalized workflows in real production conditions.
Transmit and receive NDI® HX3
NDI is the industry-leading IP video standard that delivers high-quality, ultra-low-latency, frame-accurate video and audio across standard networks. With built-in Ethernet and native NDI HX3 support, Shogun AV‑19 can send or receive broadcast-quality video, audio, and metadata over a single, standard RJ45 cable – simplifying workflows and enabling powerful, flexible IP-based production.
Professional monitoring tools
Shogun AV-19 offers a comprehensive suite of simple, one-touch monitoring tools for focus, framing, and exposure, including focus peaking, zoom (2:1, 1:1), zebras, false color (including ARRI and EL Zone™), frame guides, SMPTE safe areas, grid markers, waveforms, an RGB parade, vectorscope, and flexible 3D/1D LUT support with profile and preset options (including .cube file uploads). Additionally, Shogun Av-19 provides anamorphic de-squeeze monitoring to correct the ratio for anamorphic lens setups.

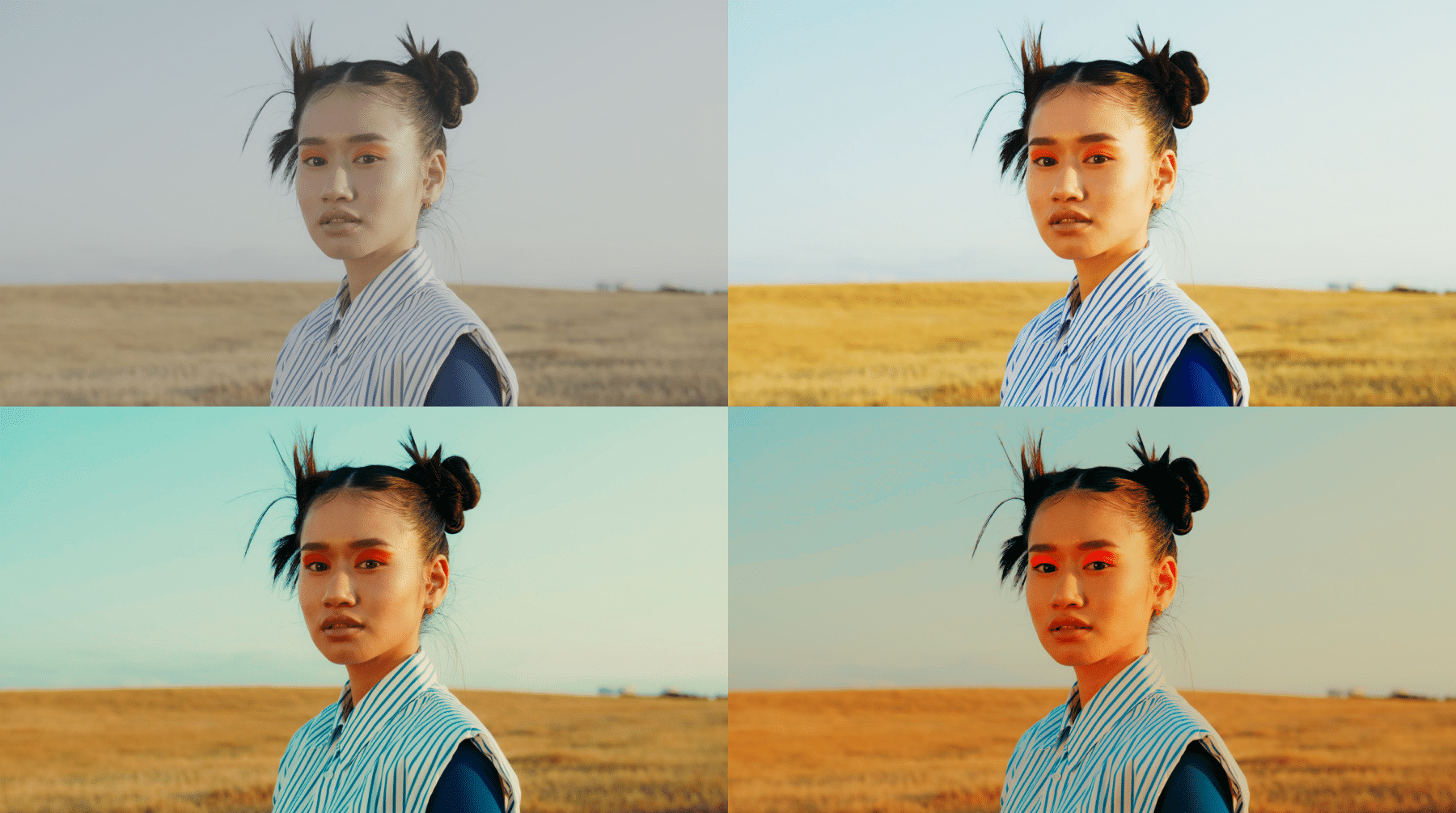

Shogun AV-19 receives LOG signals from the camera and offers real-time LUT (Look-Up Table) preview to approximate what the final graded image will look like in Rec.709 — all while recording in high-quality ProRes, DNxHR, or ProRes RAW. Custom LUTs (.cube files) can be loaded from the CFexpress card or SSD and used in conjunction with the Shogun’s built-in monitoring tools for precise exposure control.
Complete solution for broadcast and events
Events
Ideal for live events where multiple cameras, fast decisions, and reliable monitoring are vital. Switch live between cameras or graphics using the responsive touchscreen or physical function buttons, and deliver the perfect feed to stage or as a record of the event, all from a single compact, road-case-ready device.
On set

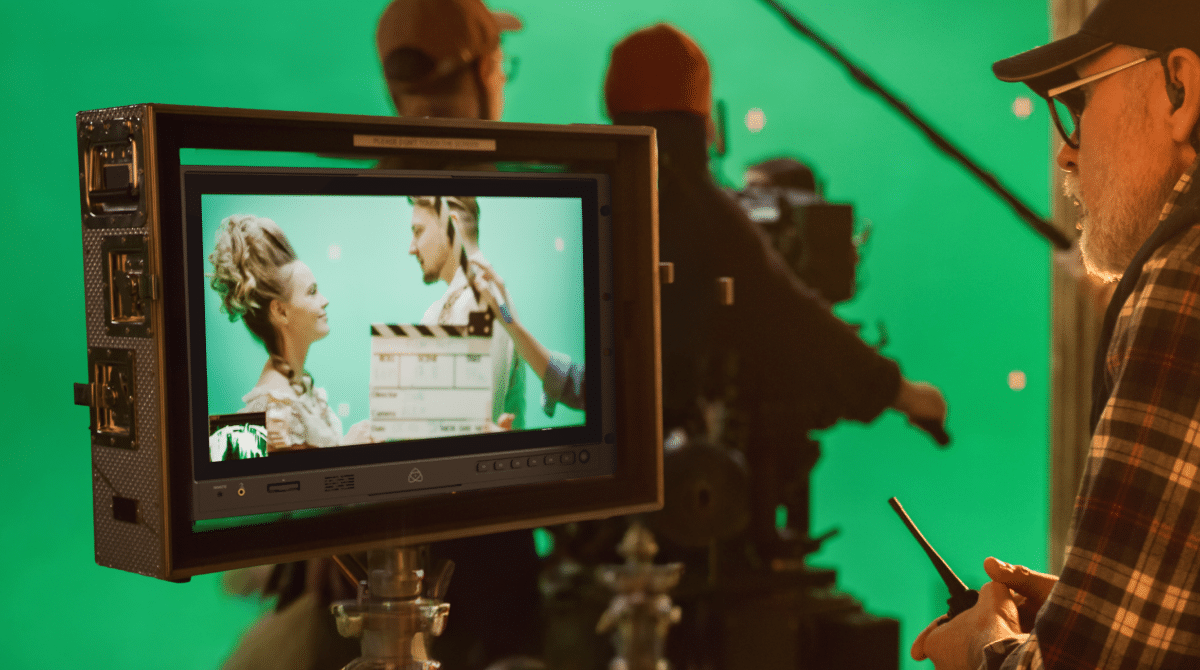

On set, Shogun AV-19 provides a bright, color-accurate reference display for directors, DITs, and other crew combined with the additional power of quick and easy playback of recorded takes. With a full suite of Atomos monitoring tools, Shogun AV makes it easy to evaluate exposure, focus, color and framing with confidence.
Control room

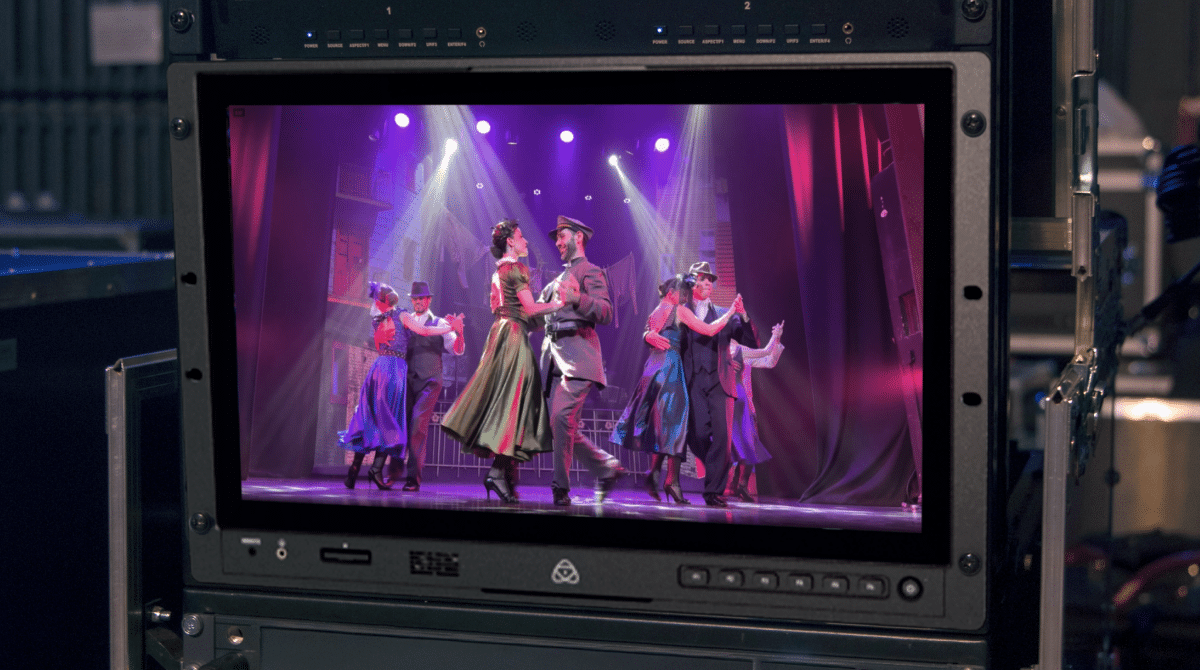

In control room environments, Shogun AV-19 provides a compact, reliable monitoring, recording, and switching solution. Oversee multiple camera inputs and make informed decisions during live or recorded productions. Its rack-mount form factor and easy calibration make it a practical choice for permanent installations.

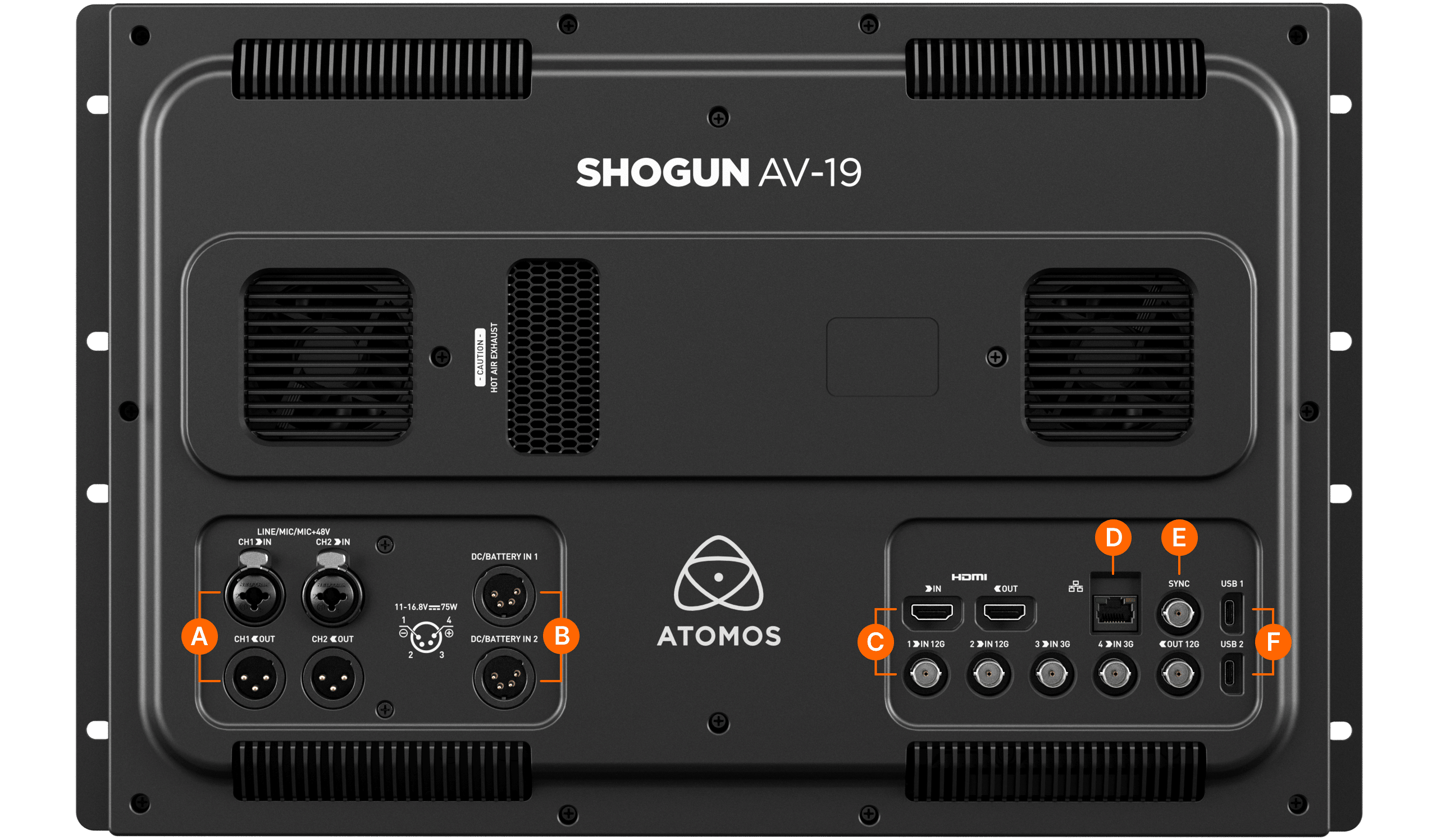

Ultimate connectivity
Shogun AV-19 supports demanding production workflows with comprehensive SDI and HDMI I/O, audio connectivity, timecode, and power options.
Audio
XLR inputs for line-level or mic sources, with selectable 48 V phantom power for compatible mics. XLR outputs for monitoring.
Power
1 x 4-pin XLR for DC power supply included, or single battery (purchased separately).
HDMI & SDI
2 x 12G-SDI (6G/3G backwards compatible) + 2 x 3G‑SDI inputs. Level A & B supported. 1 x 12G-SDI out. 1 x HDMI in/out up to 4K60P.
Networking
RJ45 Ethernet port unlocks powerful IP workflows with a single, standard network cable, including NDI and cloud connectivity.
Sync
Supports reference signal input to lock to an external source. Can also be used as a LTC timecode input for multi-camera setups.
USB
2 x USB-C ports for attaching external storage media, camera control, and other accessories.
View the comprehensive list of tech specs
Camera control

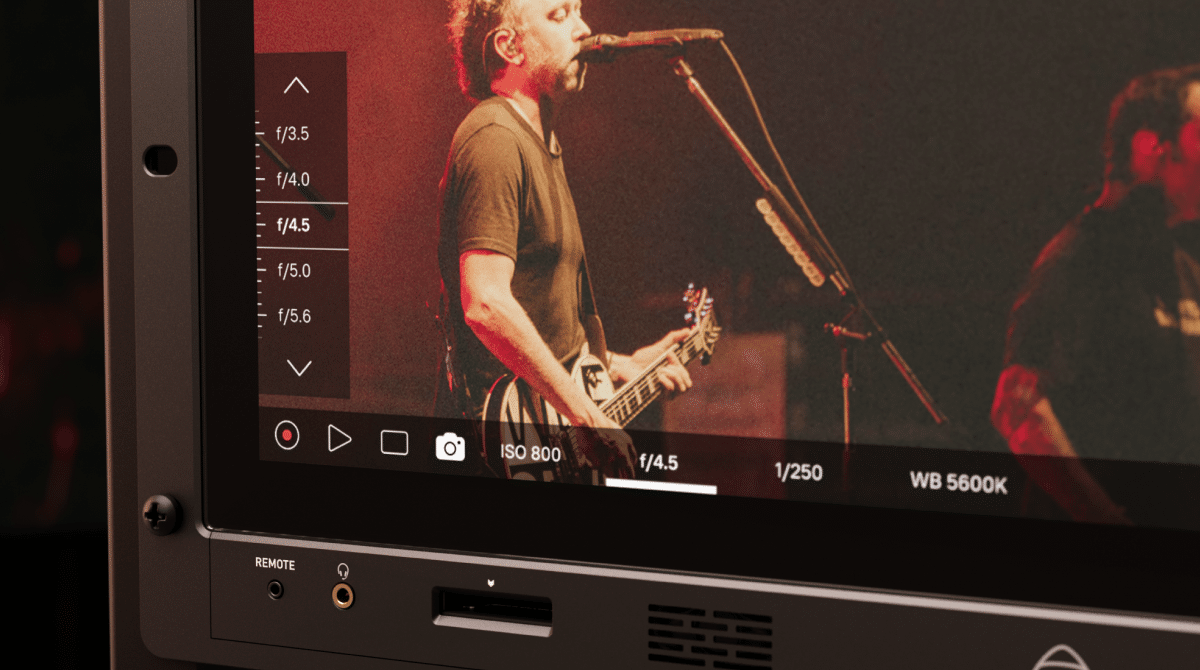

Using intuitive, on-screen sliders you can tweak white balance, aperture, shutter speed/angle and ISO. A red edge display indicates when the camera is recording internally, whether triggered by the camera or from the Shogun AV-19. Control is available for most Canon, Fujifilm, Nikon, Panasonic, and Sony mirrorless cameras over USB-C, and all Z CAM E2 series models (cable required, purchased separately – ATOMCAB018).
Calibration you can trust

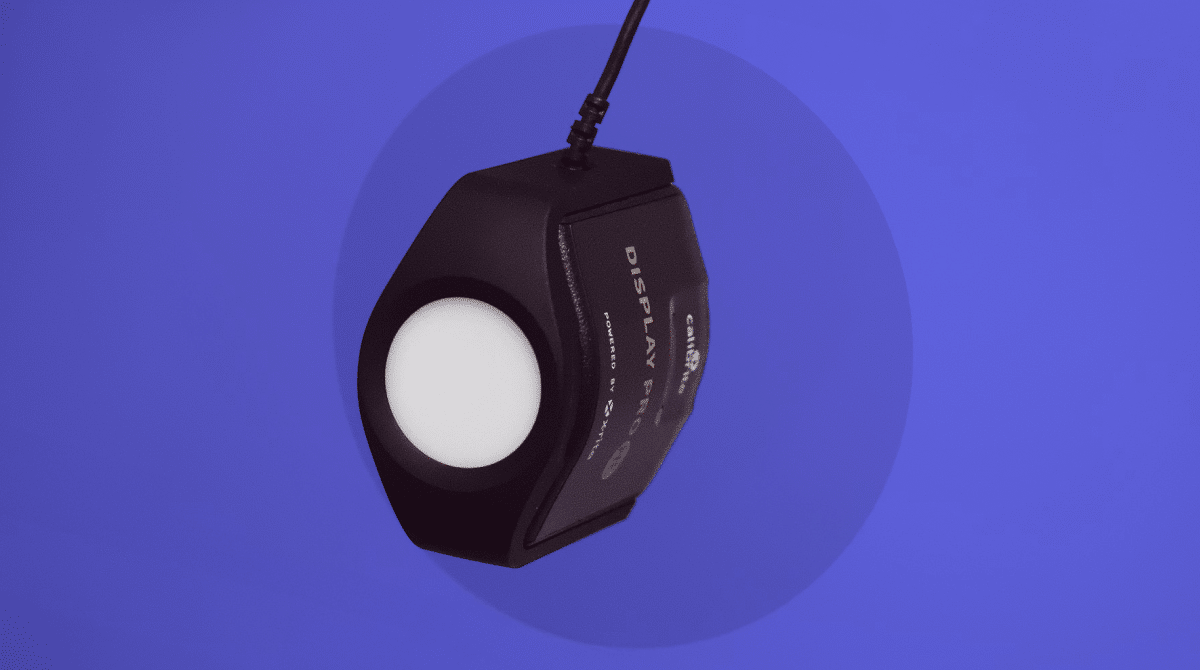

Shogun AV-19 supports professional calibration with Calibrite Display Pro HL and Plus HL probes via the Atomos Calibrator app, using the Atomos calibration cable (ATOMCAB018, sold separately). This ensures consistently accurate HDR and Rec.709 monitoring, so what you see on screen is exactly what you deliver.
Pro audio, fully integrated
Shogun AV-19 supports 24-bit/48 kHz PCM audio, accepts two balanced XLR inputs with 48V phantom power for external mics or line sources, and has gain controls, meters, and per-channel delay adjustment. You also get balanced XLR outputs, embedded HDMI/SDI audio, built-in speakers, and a headphone jack for direct monitoring and sync with video.
